The most comprehensive, powerful and versatile diathermy machine.

The Diacare 8000 Pro is designed for highly effective tecar therapy, offering a greater variety of frequencies, including the 2 internationally validated as medical (448 and 470Khz), and advanced features that set it apart from other devices. Operating in both capacitive and resistive modes, it is a powerful tool for treating pain associated with sports injuries and addressing both chronic and acute musculoskeletal disorders.
The core principle behind the Diacare 8000 Pro is endogenous heat therapy, which utilizes high-frequency currents to promote healing through the body’s internal energy and natural self-regeneration processes. This advanced technology ensures deep tissue penetration, making it highly effective for sports injury prevention and recovery.

Our cutting-edge tecar treatment stimulates deep tissue regeneration, achieving results beyond manual therapy alone. By integrating Diacare into their practice, therapists can deliver more effective and efficient care tailored to each athlete’s needs. With over 400 scientifically validated protocols, Diacare empowers therapists to accelerate recovery, reduce rehabilitation time, and elevate athletic performance.

8000 Pro Features

<span data-metadata=""><span data-buffer="">Greater Variety of Frequencies

<span data-metadata=""><span data-buffer="">400, 448, 470, 700, 1000, 1200 KHz<span data-metadata="">

Expanded treatment options with six unique frequencies.

<span data-metadata=""><span data-buffer="">Suggested Protocols<span data-metadata="">

<span data-metadata=""><span data-buffer="">Pre-installed Protocols<span data-metadata="">

Built-in treatment suggestions for optimal therapy settings.

<span data-metadata=""><span data-buffer="">Integrated Photos<span data-metadata="">

<span data-metadata=""><span data-buffer="">Visual treatment Guides<span data-metadata="">

Photos on the device for accurate treatment positioning.

<span data-metadata=""><span data-buffer="">Self Calibration<span data-metadata="">

<span data-metadata=""><span data-buffer="">Real-Time Adjustment<span data-metadata="">

Measures tissue impedance to maintain consistent energy levels.

<span data-metadata=""><span data-buffer="">Capacitive & Resistive Modality<span data-metadata="">

<span data-metadata=""><span data-buffer="">Dual-Mode Operation<span data-metadata="">

Versatile treatment options with capacitive and resistive modes.

<span data-metadata=""><span data-buffer="">Hand Pieces<span data-metadata="">

<span data-metadata=""><span data-buffer="">Various Shapes and Sizes<span data-metadata="">

Different hand pieces for tailored treatments.

<span data-metadata=""><span data-buffer="">Self-Adhesive Electrodes<span data-metadata="">

<span data-metadata=""><span data-buffer="">Treatment in Motion<span data-metadata="">

Self-adhesive electrodes for performing treatments while in motion.

Technical Specifications

  • Display: Size 7” color touchscreen display
  • Power: 350W ±10%
  • Outputs: 2
  • Frequency: 400kHz, 448 kHz, 470kHz, 700kHz, 1000kHz, 1200kHz, ± 10%
  • Treatment modality: Capacitive and Resistive
  • Capacitive electrodes: 3 size (Ø mm 30, 50, 70)
  • Resistive electrodes: 3 size (Ø (mm 30, 50, 70)
  • Power: 100-240V AC, 50-60Hz, 1.8A
  • Size:mm 515x340x170
  • Weight: 22 lbs

Equipment

  • 1 DiaCaRe 8000 Pro TECAR therapy unit
  • 1 Ground Plate
  • 1 Monopolar Resistive handpiece with 3 heads (Ø mm 30, 50, 70)
  • 1 Monopolar Capacitive handpiece with 3 heads Ø (mm 30, 50, 70)
  • 1 Bipolar handpiece Ø (mm 50)
  • 1 Hands-Free Kit
  • 1 Liter of cream
  • Power Cord
  • Operating manual

Special Features

  • RESISTIVE
  • CAPACITIVE
  • BIPOLAR
  • IMPEDANCE CALIBRATION
  • PRESET PROGRAMS
  • ATLAS
  • MULTIFREQUENCY
  • HANDS-FREE
  • AUTOMATIC FREQUENCY SCANNING
  • TRANSDERMAL DELIVERY
  • AUTOMATIC APPLICATION MODE
  • ATHERMY TREATMENTS
  • PULSED TREATMENTS

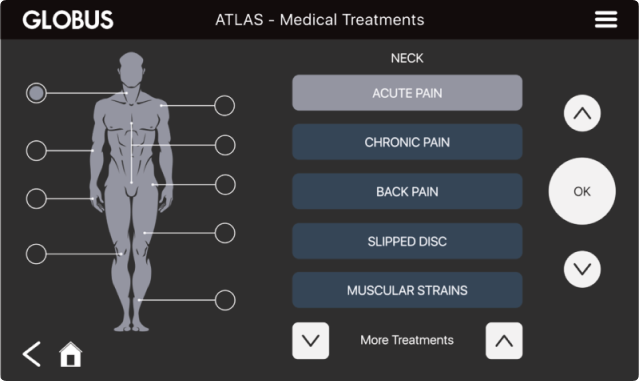

Human Atlas

<span data-metadata=""><span data-buffer="">Explore the ATLAS to find the specific pathology you want to treat.<span data-metadata="">

You’ll discover detailed diagrams of different parts of the human body, a comprehensive list of pathologies, and suggested treatment protocols to guide your therapeutic approach.

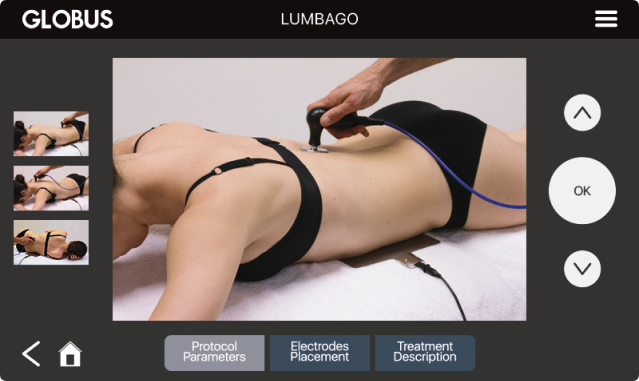

Pre-set programs

  • 400 Scientifically Backed Built-In Protocols
  • Bone And Articular Pathologies
  • Pathologies Of Tendons And Ligaments
  • Muscular And Soft Tissue Pathologies
  • Vascular And Lymphatic Pathologies
  • Pathologies Of The Nervous System

Hands-Free Mode

The HANDS-FREE mode utilizes two or more fixed electrodes positioned on the treated area.
This allows the therapist to perform manual treatments simultaneously, enhancing the overall effectiveness of the therapy. By combining hands-free TECAR therapy with manual techniques, therapists can achieve more comprehensive and targeted treatment outcomes.
